Primary Current Injection Test System SLQ

Price : email whhy818@163.com

Place of Origin : Wuhan,Hubei,China

Brand Name : Huaying

Certification : ISO CE

MOQ : 1 set

Packaging Details : wooden case

Delivery Time : 7 working days

Payment Terms : T/T L/C

Supply Ability : 200 sets per month

Contact Now

Primary Current Injection Test System SLQ

SLQ primary injection test set is a high current generator instrument.
It is applied in current transformer test , circuit breaker test and so on.
Aadjustable output current, smooth in current rise, large scope of load variation, easy and safe operation

Type	Capacity (kva)	Power supply		Output		Impedance voltage %	Idle current %	mode
Type	Capacity (kva)	I (A)	V (V)	I (A)	V (V)	Impedance voltage %	Idle current %	mode
SLQ-5/500	3	13.6	220	500	5	>8	>6	single
SLQ -5/1000	5	22.7	220	1000	5	>8	>6	single
SLQ -10/2000	10	46	220	2000	5	>8	>6	Separated
SLQ -12/4000	12	30	400	2000/4000	6/3	>8	>6	Separated
SLQ -15/5000	15	37.5	400	2500/5000	6/3	>8	>6	Separated
SLQ -150/25kA	150	375	400	25000	6	>8	>6	Separated

Environment temperature: 0~50°C

Humidity: ≤85%RH

China Primary Current Injection Test System SLQ factory

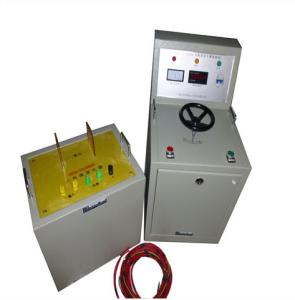

Primary Current Injection Test System SLQ Images
